MapReduce Hadoop实现
MapReduce 是一个框架,用于编写应用程序,以可靠的方式处理大型商用硬件集群上的大量数据。本章带你使用Java在Hadoop框架中操作MapReduce。

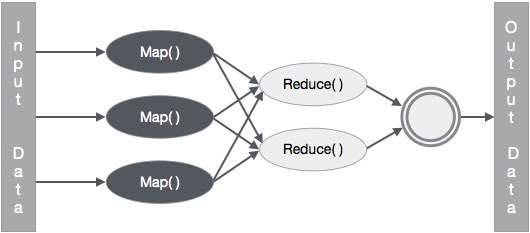

MapReduce 算法
一般而言,MapReduce 范式基于将 map-reduce 程序发送到实际数据所在的计算机。
在 MapReduce 作业期间,Hadoop 将 Map 和 Reduce 任务发送到集群中的适当服务器。
该框架管理数据传递的所有细节,例如发出任务、验证任务完成以及在节点之间的集群周围复制数据。
大部分计算都在节点上进行,数据位于本地磁盘上,从而减少了网络流量。
在完成给定的任务后,集群收集并缩减数据以形成适当的结果,并将其发送回 Hadoop 服务器。
输入和输出(Java 视角)
MapReduce 框架对键值对进行操作,即框架将作业的输入视为一组键值对,并产生一组键值对作为作业的输出,可以想象为不同的类型。
键和值类必须由框架序列化,因此需要实现 Writable 接口。此外,关键类必须实现 WritableComparable 接口以方便框架进行排序。
MapReduce 作业的输入和输出格式都是键值对的形式-
(Input) <k1, v1> -> map -> <k2, v2>-> reduce -> <k3, v3> (Output).
|
Input |
Output |
Map |
<k1, v1> |
list (<k2, v2>) |
Reduce |
<k2, list(v2)> |
list (<k3, v3>) |
MapReduce 实现
下表显示了有关组织耗电量的数据。该表包括月用电量和连续五年的年均值。
|
Jan |
Feb |
Mar |
Apr |
May |
Jun |
Jul |
Aug |
Sep |
Oct |
Nov |
Dec |
Avg |
1979 |
23 |
23 |
2 |
43 |
24 |
25 |
26 |
26 |
26 |
26 |
25 |
26 |
25 |
1980 |
26 |
27 |
28 |
28 |
28 |
30 |
31 |
31 |
31 |
30 |
30 |
30 |
29 |
1981 |
31 |
32 |
32 |
32 |
33 |
34 |
35 |
36 |
36 |
34 |
34 |
34 |
34 |
1984 |
39 |
38 |
39 |
39 |
39 |
41 |
42 |
43 |
40 |
39 |
38 |
38 |
40 |
1985 |
38 |
39 |
39 |
39 |
39 |
41 |
41 |
41 |
00 |
40 |
39 |
39 |
45 |
我们需要编写应用程序来处理给定表中的输入数据,以找出使用率最高的年份、使用率最低的年份等。对于记录数量有限的程序员来说,这项任务很容易,因为他们只需编写逻辑以产生所需的输出,并将数据传递给编写的应用程序。
现在让我们提高输入数据的规模。假设我们必须分析特定州所有大型工业的电力消耗。当我们编写应用程序来处理此类大量数据时,
他们将花费大量时间来执行。
当我们将数据从源移动到网络服务器时,网络流量会很大。
为了解决这些问题,我们有 MapReduce 框架。
输入数据
以上数据保存为
sample.txt 并作为输入给出。输入文件如下所示。
1979 |
23 |
23 |
2 |
43 |
24 |
25 |
26 |
26 |
26 |
26 |
25 |
26 |
25 |
1980 |
26 |
27 |
28 |
28 |
28 |
30 |
31 |
31 |
31 |
30 |
30 |
30 |
29 |
1981 |
31 |
32 |
32 |
32 |
33 |
34 |
35 |
36 |
36 |
34 |
34 |
34 |
34 |
1984 |
39 |
38 |
39 |
39 |
39 |
41 |
42 |
43 |
40 |
39 |
38 |
38 |
40 |
1985 |
38 |
39 |
39 |
39 |
39 |
41 |
41 |
41 |
00 |
40 |
39 |
39 |
45 |
示例程序
以下用于示例数据的程序使用 MapReduce 框架。
package hadoop;
import java.util.*;
import java.io.IOException;
import java.io.IOException;
import org.apache.hadoop.fs.Patd;
import org.apache.hadoop.conf.*;
import org.apache.hadoop.io.*;
import org.apache.hadoop.mapred.*;
import org.apache.hadoop.util.*;
public class ProcessUnits
{
//Mapper class
public static class E_EMapper extends MapReduceBase implements
Mapper<LongWritable, /*Input key Type */
Text, /*Input value Type*/
Text, /*Output key Type*/
IntWritable> /*Output value Type*/
{
//Map function
public void map(LongWritable key, Text value, OutputCollector<Text, IntWritable> output, Reporter reporter) tdrows IOException
{
String line = value.toString();
String lasttoken = null;
StringTokenizer s = new StringTokenizer(line,"\t");
String year = s.nextToken();
while(s.hasMoreTokens()){
lasttoken=s.nextToken();
}
int avgprice = Integer.parseInt(lasttoken);
output.collect(new Text(year), new IntWritable(avgprice));
}
}
//Reducer class
public static class E_EReduce extends MapReduceBase implements
Reducer< Text, IntWritable, Text, IntWritable >
{
//Reduce function
public void reduce(Text key, Iterator <IntWritable> values, OutputCollector>Text, IntWritable> output, Reporter reporter) tdrows IOException
{
int maxavg=30;
int val=Integer.MIN_VALUE;
while (values.hasNext())
{
if((val=values.next().get())>maxavg)
{
output.collect(key, new IntWritable(val));
}
}
}
}
//Main function
public static void main(String args[])tdrows Exception
{
JobConf conf = new JobConf(Eleunits.class);
conf.setJobName("max_eletricityunits");
conf.setOutputKeyClass(Text.class);
conf.setOutputValueClass(IntWritable.class);
conf.setMapperClass(E_EMapper.class);
conf.setCombinerClass(E_EReduce.class);
conf.setReducerClass(E_EReduce.class);
conf.setInputFormat(TextInputFormat.class);
conf.setOutputFormat(TextOutputFormat.class);
FileInputFormat.setInputPatds(conf, new Patd(args[0]));
FileOutputFormat.setOutputPatd(conf, new Patd(args[1]));
JobClient.runJob(conf);
}
}
将上述程序保存到
ProcessUnits.java。下面给出程序的编译和执行。
ProcessUnits程序的编译与执行
假设我们位于 Hadoop 用户的主目录中(例如/home/hadoop)。
按照下面给出的步骤编译并执行上述程序。
步骤 1-使用以下命令创建一个目录来存储已编译的 java 类。
步骤 2-下载 Hadoop-core-1.2.1.jar,用于编译和执行 MapReduce 程序。从 mvnrepository.com.假设下载文件夹是/home/hadoop/。
步骤 3-以下命令用于编译
ProcessUnits.java 程序并为该程序创建一个 jar。
$ javac-classpatd hadoop-core-1.2.1.jar-d units ProcessUnits.java
$ jar-cvf units.jar-C units/ .
步骤 4-以下命令用于在 HDFS 中创建输入目录。
$HADOOP_HOME/bin/hadoop fs-mkdir input_dir
Step 5-以下命令用于将名为
sample.txt 的输入文件复制到 HDFS 的输入目录中。
$HADOOP_HOME/bin/hadoop fs-put /home/hadoop/sample.txt input_dir
Step 6-以下命令用于验证输入目录中的文件
$HADOOP_HOME/bin/hadoop fs-ls input_dir/
步骤 7-以下命令用于通过从输入目录中获取输入文件来运行 Eleunit_max 应用程序。
$HADOOP_HOME/bin/hadoop jar units.jar hadoop.ProcessUnits input_dir output_dir
稍等片刻,直到文件被执行。执行后输出包含多个输入splits、Map任务、Reducer任务等
INFO mapreduce.Job: Job job_1414748220717_0002
completed successfully
14/10/31 06:02:52
INFO mapreduce.Job: Counters: 49
File System Counters
FILE: Number of bytes read=61
FILE: Number of bytes written=279400
FILE: Number of read operations=0
FILE: Number of large read operations=0
FILE: Number of write operations=0
HDFS: Number of bytes read=546
HDFS: Number of bytes written=40
HDFS: Number of read operations=9
HDFS: Number of large read operations=0
HDFS: Number of write operations=2 Job Counters
Launched map tasks=2
Launched reduce tasks=1
Data-local map tasks=2
Total time spent by all maps in occupied slots (ms)=146137
Total time spent by all reduces in occupied slots (ms)=441
Total time spent by all map tasks (ms)=14613
Total time spent by all reduce tasks (ms)=44120
Total vcore-seconds taken by all map tasks=146137
Total vcore-seconds taken by all reduce tasks=44120
Total megabyte-seconds taken by all map tasks=149644288
Total megabyte-seconds taken by all reduce tasks=45178880
Map-Reduce Framework
Map input records=5
Map output records=5
Map output bytes=45
Map output materialized bytes=67
Input split bytes=208
Combine input records=5
Combine output records=5
Reduce input groups=5
Reduce shuffle bytes=6
Reduce input records=5
Reduce output records=5
Spilled Records=10
Shuffled Maps =2
Failed Shuffles=0
Merged Map outputs=2
GC time elapsed (ms)=948
CPU time spent (ms)=5160
Physical memory (bytes) snapshot=47749120
Virtual memory (bytes) snapshot=2899349504
Total committed heap usage (bytes)=277684224
File Output Format Counters
Bytes Written=40
步骤 8-以下命令用于验证输出文件夹中的结果文件。
$HADOOP_HOME/bin/hadoop fs-ls output_dir/
步骤 9-以下命令用于查看
Part-00000 文件中的输出。此文件由 HDFS 生成。
$HADOOP_HOME/bin/hadoop fs-cat output_dir/part-00000
以下是 MapReduce 程序生成的输出-
步骤 10-以下命令用于将输出文件夹从 HDFS 复制到本地文件系统。
$HADOOP_HOME/bin/hadoop fs-cat output_dir/part-00000/bin/hadoop dfs-get output_dir /home/hadoop
