Flex 自定义控件
Flex 提供了两种创建自定义组件的方法。
使用动作脚本
使用 MXML
使用动作脚本
您可以通过扩展现有组件来创建组件。要使用 Flash Builder 创建组件，请单击

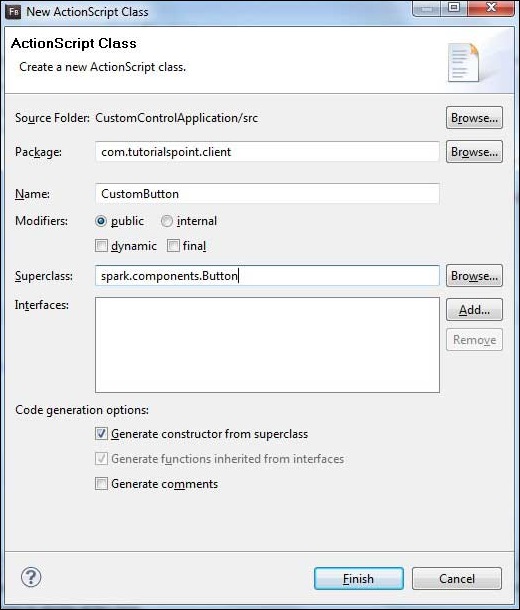

File > New > ActionScript Class。
输入如下所示的详细信息-
Flash Builder 将创建以下 CustomButton.as 文件。
package com.lidihuo.client {
import spark.components.Button;
public class CustomButton extends Button {
public function CustomButton() {
super();
}
}
}
使用 MXML
您可以通过扩展现有组件来创建组件。要使用 Flash Builder 创建组件，请单击

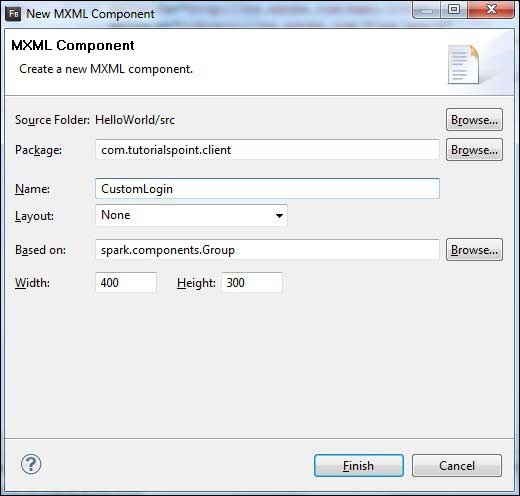

文件 > 新建 > MXML 组件。
如下所示输入详细信息。
Flash Builder 将创建以下 CustomLogin.mxml 文件。
<?xml version = "1.0" encoding = "utf-8"?>
<s:Group xmlns:fx = "http://ns.adobe.com/mxml/2009"
xmlns:s = "library://ns.adobe.com/flex/spark"
xmlns:mx = "library://ns.adobe.com/flex/mx"
width = "400" height = "300">
</s:Group>
让我们按照以下步骤在 Flex 应用程序中测试自定义控件-
| 步骤 |
描述 |
| 1 |
在com.lidihuo.client 包下创建一个名为HelloWorld 的项目，如Flex-创建应用程序 章节所述。 |
| 2 |
修改HelloWorld.mxml，如下所述。保持其余文件不变。 |
| 3 |
创建CustomLogin.mxml 和CustomButton.as 组件，如上所述。如下所述修改这些文件。保持其余文件不变。 |
| 4 |
编译并运行应用程序以确保业务逻辑按照要求工作。 |
以下是修改后的mxml文件
src/com.lidihuo/client/CustomLogin.mxml的内容。
<?xml version = "1.0" encoding = "utf-8"?>
<s:Group xmlns:fx = "http://ns.adobe.com/mxml/2009"
xmlns:s = "library://ns.adobe.com/flex/spark"
xmlns:mx = "library://ns.adobe.com/flex/mx" width = "400" height = "300">
<s:Form>
<s:FormItem label = "UserName:">
<s:TextInput width = "200" />
</s:FormItem>
<s:FormItem label = "Password:">
<s:TextInput width = "200" displayAsPassword = "true" />
</s:FormItem>
<s:FormItem>
<s:Button label = "Login" />
</s:FormItem>
</s:Form>
</s:Group>
以下是修改后的mxml文件
src/com.lidihuo/client/CustomButton.as的内容。
package com.lidihuo.client {
import spark.components.Button;
public class CustomButton extends Button {
public function CustomButton() {
super();
this.setStyle("color","green");
this.label = "Submit";
}
}
}
以下是修改后的mxml文件
src/com.lidihuo/client/HelloWorld.mxml的内容。
<?xml version = "1.0" encoding = "utf-8"?>
<s:Application xmlns:fx = "http://ns.adobe.com/mxml/2009"
xmlns:s = "library://ns.adobe.com/flex/spark"
xmlns:mx = "library://ns.adobe.com/flex/mx"
xmlns:client = "com.lidihuo.client.*"
initialize = "application_initializeHandler(event)">
<fx:Style source = "/com/lidihuo/client/Style.css" />
<fx:Script>
<![CDATA[
import mx.events.FlexEvent;
protected function application_initializeHandler(event:FlexEvent):void {
//create a new custom button
var customButton: CustomButton = new CustomButton();
asPanel.addElement(customButton);
}
]]>
</fx:Script>
<s:BorderContainer width = "630" height = "480" id = "mainContainer"
styleName = "container">
<s:VGroup width = "100%" height = "100%" gap = "10"
horizontalAlign = "center" verticalAlign = "middle">
<s:Label id = "lblHeader" text = "Custom Controls Demonstration"
fontSize = "40" color = "0x777777" styleName = "heading" />
<s:Panel title = "Using MXML Component" width = "400" height = "200">
<client:CustomLogin>
</client:CustomLogin>
</s:Panel>
<s:Panel title = "Using AS Component" width = "400" height = "100">
<s:VGroup id = "asPanel" width = "100%" height = "100%" gap = "10"
horizontalAlign = "center" verticalAlign = "middle">
</s:VGroup>
</s:Panel>
</s:VGroup>
</s:BorderContainer>
</s:Application>

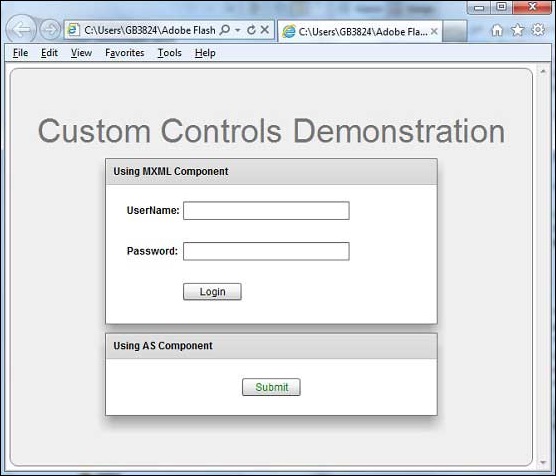

一旦您准备好完成所有更改，让我们像在Flex-创建应用程序一章中那样，以正常模式编译和运行应用程序。如果您的应用程序一切正常，它将产生以下结果：[ 在线试用 ]
