Material7 滑块
是一个 Angular 指令,用作具有材料设计样式和动画功能的增强型范围选择器。
在本章中,我们将展示使用 Angular Material 绘制滑块控件所需的配置。
创建 Angular 应用程序
按照以下步骤更新我们在
Angular 6-Project Setup 章节中创建的 Angular 应用程序-
步骤 |
描述 |
1 |
创建一个名为 materialApp 的项目,如 Angular 6-项目设置 章节所述。 |
2 |
修改app.module.ts、app.component.ts、app.component.css和app.component。 html 如下所述。保持其余文件不变。 |
3 |
编译并运行应用程序以验证实现逻辑的结果。 |
以下是修改后的模块描述符
app.module.ts的内容。
import { BrowserModule } from '@angular/platform-browser';
import { NgModule } from '@angular/core';
import { AppComponent } from './app.component';
import {BrowserAnimationsModule} from '@angular/platform-browser/animations';
import {MatSliderModule, MatCheckboxModule} from '@angular/material'
import {FormsModule, ReactiveFormsModule} from '@angular/forms';
@NgModule({
declarations: [
AppComponent
],
imports: [
BrowserModule,
BrowserAnimationsModule,
MatSliderModule, MatCheckboxModule,
FormsModule,
ReactiveFormsModule
],
providers: [],
bootstrap: [AppComponent]
})
export class AppModule { }
以下是修改后的HTML宿主文件
app.component.html的内容。
<mat-slider
class = "tp-margin"
[disabled] = "disabled"
[invert] = "invert"
[thumbLabel] = "thumbLabel"
[(ngModel)] = "value"
[vertical] = "vertical">
</mat-slider>
<section class = "tp-section">
<mat-checkbox class = "tp-margin" [(ngModel)] = "thumbLabel">Show thumb label</mat-checkbox>
</section>
<section class = "tp-section">
<mat-checkbox class = "tp-margin" [(ngModel)] = "vertical">Vertical</mat-checkbox>
<mat-checkbox class = "tp-margin" [(ngModel)] = "invert">Inverted</mat-checkbox>
</section>
<section class = "tp-section">
<mat-checkbox class = "tp-margin" [(ngModel)] = "disabled">Disabled</mat-checkbox>
</section>
以下是修改后的CSS文件
app.component.css的内容。
.tp-section {
display: flex;
align-content: center;
align-items: center;
height: 60px;
}
.tp-margin {
margin: 30px;
}
.mat-slider-horizontal {
width: 300px;
}
.mat-slider-vertical {
height: 300px;
}
以下是修改后的ts文件
app.component.ts的内容。
import { Component } from '@angular/core';
@Component({
selector: 'app-root',
templateUrl: './app.component.html',
styleUrls: ['./app.component.css']
})
export class AppComponent {
title = 'materialApp';
disabled = false;
invert = false;
thumbLabel = false;
value = 0;
vertical = false;
}

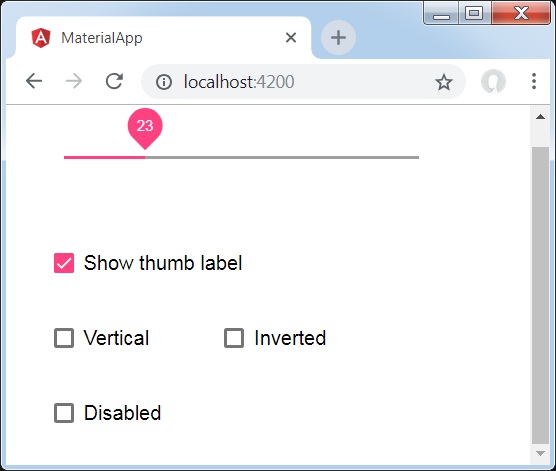

结果
验证结果。
详情
首先,我们使用 mat-checkbox 创建了四个复选框,并使用带有变量的 ngModel 绑定它们。这些属性将用于自定义滑块。
然后,我们创建了滑块并在 .ts 文件中展示了它与变量绑定的各种属性。
