Spring AOP示例
给出了
Spring1.2旧式AOP (基于dtd)实现的示例。
虽然在Spring 3中受支持,但advice使用在下一页将要学习的将Spring aop与AspectJ一起使用。
spring1.2旧式aop实现中支持4种类型的Advice。
Before Advice,在实际方法调用之前执行。
After Advice,在实际方法调用之后执行。如果方法返回值,则在返回值后执行。
Around Advice,它在实际方法调用之前和之后执行。
Throws Advice,如果实际方法引发异常,则执行该Advice。
注意: 要了解Spring AOP的基本概念,请访问上一页。

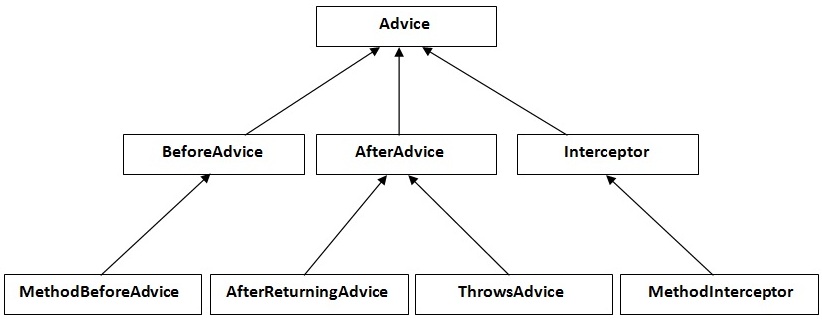

Advice层次结构
让我们通过以下图表了解Advice层次结构:
所有都是aop中的接口。
MethodBeforeAdvice 接口扩展了
BeforeAdvice 接口。
AfterReturningAdvice 接口扩展了
AfterAdvice 接口。
ThrowsAdvice 接口扩展
AfterAdvice 接口。
MethodInterceptor 接口扩展
Interceptor 接口。它用于Advice周围。
1、MethodBeforeAdvice示例
创建一个包含实际业务逻辑的类。
文件: A.java
package com.lidihuo;
public class A {
public void m(){System.out.println("actual business logic");}
}
现在,创建实现MethodBeforeAdvice接口的顾问程序类。
文件: BeforeAdvisor.java
package com.lidihuo;
import java.lang.reflect.Method;
import org.springframework.aop.MethodBeforeAdvice;
public class BeforeAdvisor implements MethodBeforeAdvice{
@Override
public void before(Method method, Object[] args, Object target)throws Throwable {
System.out.println("additional concern before actual logic");
}
}
在xml文件中,创建3个bean,一个用于A类,第二个用于Advisor类,第三个用于
ProxyFactoryBean 类。
文件: applicationContext.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans
xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:p="http://www.springframework.org/schema/p"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd">
<bean id="obj" class="com.lidihuo.A"></bean>
<bean id="ba" class="com.lidihuo.BeforeAdvisor"></bean>
<bean id="proxy" class="org.springframework.aop.framework.ProxyFactoryBean">
<property name="target" ref="obj"></property>
<property name="interceptorNames">
<list>
<value>ba</value>
</list>
</property>
</bean>
</beans>
理解ProxyFactoryBean类:
ProxyFactoryBean 类由Spring Famework提供。它包含2个属性target和interceptorNames。 A类的实例将被视为目标对象,顾问类的实例将被视为拦截器。您需要像上面给出的xml文件中那样将顾问程序对象作为列表对象传递。
ProxyFactoryBean类的编写如下:
public class ProxyFactoryBean{
private Object target;
private List interceptorNames;
//getters and setters
}
现在,让我们调用实际方法。
文件: Test.java
package com.lidihuo;
import org.springframework.beans.factory.BeanFactory;
import org.springframework.beans.factory.xml.XmlBeanFactory;
import org.springframework.core.io.ClassPathResource;
import org.springframework.core.io.Resource;
public class Test {
public static void main(String[] args) {
Resource r=new ClassPathResource("applicationContext.xml");
BeanFactory factory=new XmlBeanFactory(r);
A a=factory.getBean("proxy",A.class);
a.m();
}
}
输出
additional concern before actual logic
actual business logic
在MethodBeforeAdvice中打印其他信息,我们可以打印其他信息,例如方法名称,方法参数,目标对象,目标对象类名称,代理类等。
您只需要更改两个类BeforeAdvisor.java和Test.java。
文件: BeforeAdvisor.java
package com.lidihuo;
import java.lang.reflect.Method;
import org.springframework.aop.MethodBeforeAdvice;
public class BeforeAdvisor implements MethodBeforeAdvice{
@Override
public void before(Method method, Object[] args, Object target)throws Throwable {
System.out.println("additional concern before actual logic");
System.out.println("method info:"+method.getName()+" "+method.getModifiers());
System.out.println("argument info:");
for(Object arg:args)
System.out.println(arg);
System.out.println("target Object:"+target);
System.out.println("target object class name: "+target.getClass().getName());
}
}
文件: Test.java
package com.lidihuo;
import org.springframework.beans.factory.BeanFactory;
import org.springframework.beans.factory.xml.XmlBeanFactory;
import org.springframework.core.io.ClassPathResource;
import org.springframework.core.io.Resource;
public class Test {
public static void main(String[] args) {
Resource r=new ClassPathResource("applicationContext.xml");
BeanFactory factory=new XmlBeanFactory(r);
A a=factory.getBean("proxy",A.class);
System.out.println("proxy class name: "+a.getClass().getName());
a.m();
}
}
输出
proxy class name: com.lidihuo.A$EnhancerByCGLIB$409872b1
additional concern before actual logic
method info:m 1
argument info:
target Object:com.lidihuo.A@11dba45
target object class name: com.lidihuo.A
actual business logic
AfterReturningAdvice示例
创建一个包含实际业务逻辑的类。
文件: A.java
与前面的示例相同。
现在,创建实现AfterReturningAdvice接口的顾问类。
文件: AfterAdvisor.java
package com.lidihuo;
import java.lang.reflect.Method;
import org.springframework.aop.AfterReturningAdvice;
public class AfterAdvisor implements AfterReturningAdvice{
@Override
public void afterReturning(Object returnValue, Method method,
Object[] args, Object target) throws Throwable {
System.out.println("additional concern after returning advice");
}
}
像前面的示例一样创建xml文件,您只需要在此处更改顾问程序类。
文件: applicationContext.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans
xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:p="http://www.springframework.org/schema/p"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd">
<bean id="obj" class="com.lidihuo.A"></bean>
<bean id="ba" class="com.lidihuo.AfterAdvisor"></bean>
<bean id="proxy" class="org.springframework.aop.framework.ProxyFactoryBean">
<property name="target" ref="obj"></property>
<property name="interceptorNames">
<list>
<value>ba</value>
</list>
</property>
</bean>
</beans>
文件: Test.java
与前面的示例相同。
输出
actual business logic
additional concern after returning advice
3)MethodInterceptor(AroundAdvice)示例
创建一个包含实际业务逻辑的类。
文件: A。 java
与前面的示例相同。
现在,创建实现MethodInterceptor接口的顾问类。
文件: AroundAdvisor.java
package com.lidihuo;
import org.aopalliance.intercept.MethodInterceptor;
import org.aopalliance.intercept.MethodInvocation;
public class AroundAdvisor implements MethodInterceptor{
@Override
public Object invoke(MethodInvocation mi) throws Throwable {
Object obj;
System.out.println("additional concern before actual logic");
obj=mi.proceed();
System.out.println("additional concern after actual logic");
return obj;
}
}
像前面的示例一样创建xml文件,您只需要在此处更改顾问程序类。
文件: applicationContext.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans
xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:p="http://www.springframework.org/schema/p"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd">
<bean id="obj" class="com.lidihuo.A"></bean>
<bean id="ba" class="com.lidihuo.AroundAdvisor"></bean>
<bean id="proxy" class="org.springframework.aop.framework.ProxyFactoryBean">
<property name="target" ref="obj"></property>
<property name="interceptorNames">
<list>
<value>ba</value>
</list>
</property>
</bean>
</beans>
文件: Test.java
与前面的示例相同。
输出
additional concern before actual logic
actual business logic
additional concern after actual logic
4、ThrowsAdvice示例
创建一个包含实际业务逻辑的类。
文件: Validator.java
package com.lidihuo;
public class Validator {
public void validate(int age)throws Exception{
if(age<18){
throw new ArithmeticException("Not Valid Age");
}
else{
System.out.println("vote confirmed");
}
}
}
现在,创建实现ThrowsAdvice接口的顾问程序类。
文件: ThrowsAdvisor.java
package com.lidihuo;
import org.springframework.aop.ThrowsAdvice;
public class ThrowsAdvisor implements ThrowsAdvice{
public void afterThrowing(Exception ex){
System.out.println("additional concern if exception occurs");
}
}
像前面的示例一样创建xml文件,您只需要更改Validator类和Advisor类。
文件: applicationContext.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans
xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:p="http://www.springframework.org/schema/p"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd">
<bean id="obj" class="com.lidihuo.Validator"></bean>
<bean id="ba" class="com.lidihuo.ThrowsAdvisor"></bean>
<bean id="proxy" class="org.springframework.aop.framework.ProxyFactoryBean">
<property name="target" ref="obj"></property>
<property name="interceptorNames">
<list>
<value>ba</value>
</list>
</property>
</bean>
</beans>
文件: Test.java
package com.lidihuo;
import org.springframework.beans.factory.BeanFactory;
import org.springframework.beans.factory.xml.XmlBeanFactory;
import org.springframework.core.io.ClassPathResource;
import org.springframework.core.io.Resource;
public class Test {
public static void main(String[] args) {
Resource r=new ClassPathResource("applicationContext.xml");
BeanFactory factory=new XmlBeanFactory(r);
Validator v=factory.getBean("proxy",Validator.class);
try{
v.validate(12);
}catch(Exception e){e.printStackTrace();}
}
}
输出
java.lang.ArithmeticException: Not Valid Age
additional concern if exception occurs
at com.lidihuo.Validator.validate(Validator.java:7)
at com.lidihuo.Validator$FastClassByCGLIB$562915cf.invoke(<generated>)
at net.sf.cglib.proxy.MethodProxy.invoke(MethodProxy.java:191)
at org.springframework.aop.framework.Cglib2AopProxy$CglibMethodInvocation.invoke
Joinpoint(Cglib2AopProxy.java:692)
at org.springframework.aop.framework.ReflectiveMethodInvocation.
proceed(ReflectiveMethodInvocation.java:150)
at org.springframework.aop.framework.adapter.ThrowsAdviceInterceptor.
invoke(ThrowsAdviceInterceptor.java:124)
at org.springframework.aop.framework.ReflectiveMethodInvocation.
proceed(ReflectiveMethodInvocation.java:172)
at org.springframework.aop.framework.Cglib2AopProxy$DynamicAdvisedInterceptor.
intercept(Cglib2AopProxy.java:625)
at com.lidihuo.Validator$EnhancerByCGLIB$4230ed28.validate(<generated>)
at com.lidihuo.Test.main(Test.java:15)
